U-IBC/PEC Module Technology

About U-IBC

Since over two decades ago, IBC cell has been very attractive due to its high conversion efficiency by eliminating the busbar- and finger-shaded areas on the front side of the cell, with both positive and negative electrodes on the same rear side of the cell, resulting a saving of 3 - 4 % loss of output as occurring in conventional busbar cells.

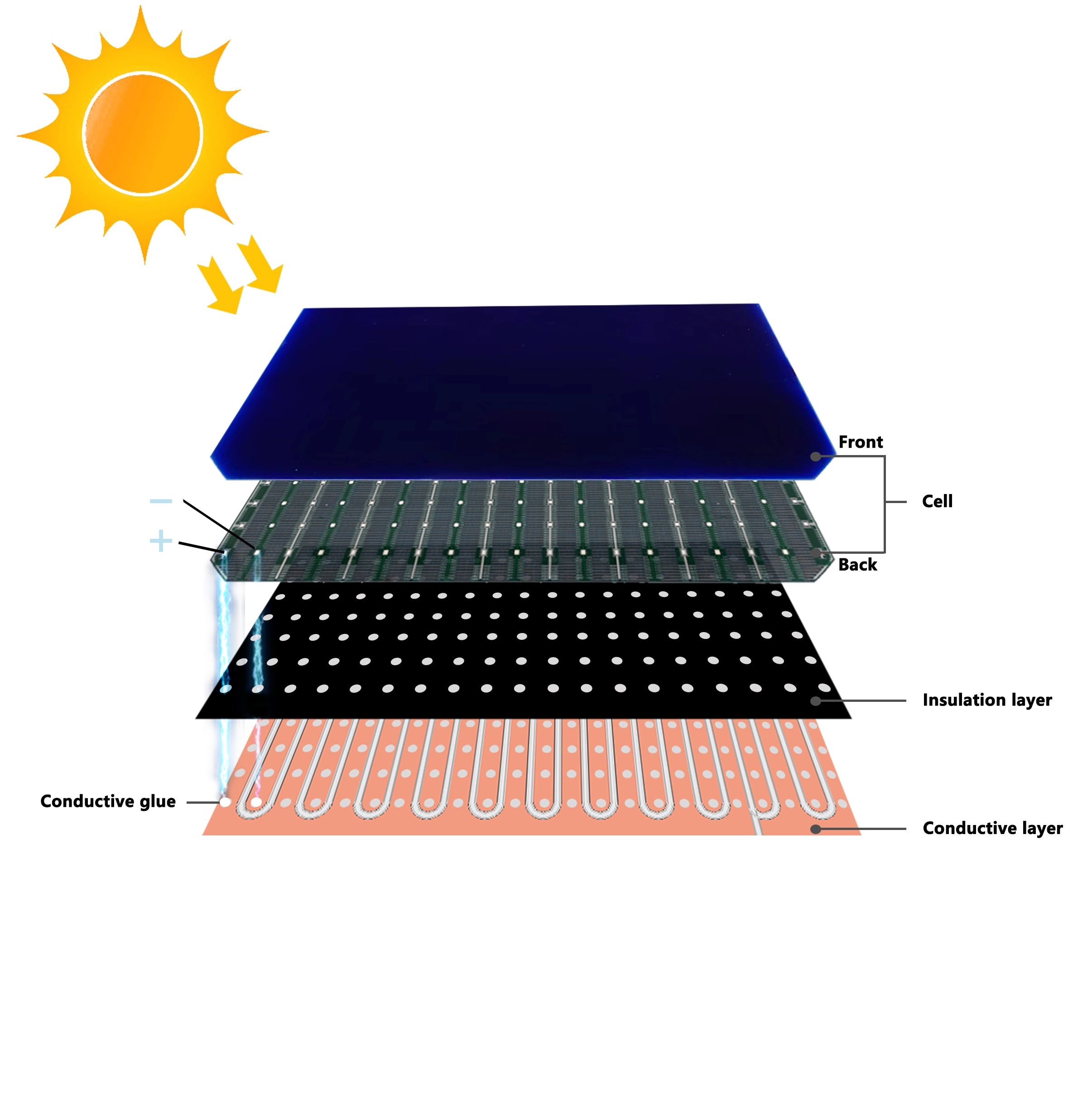

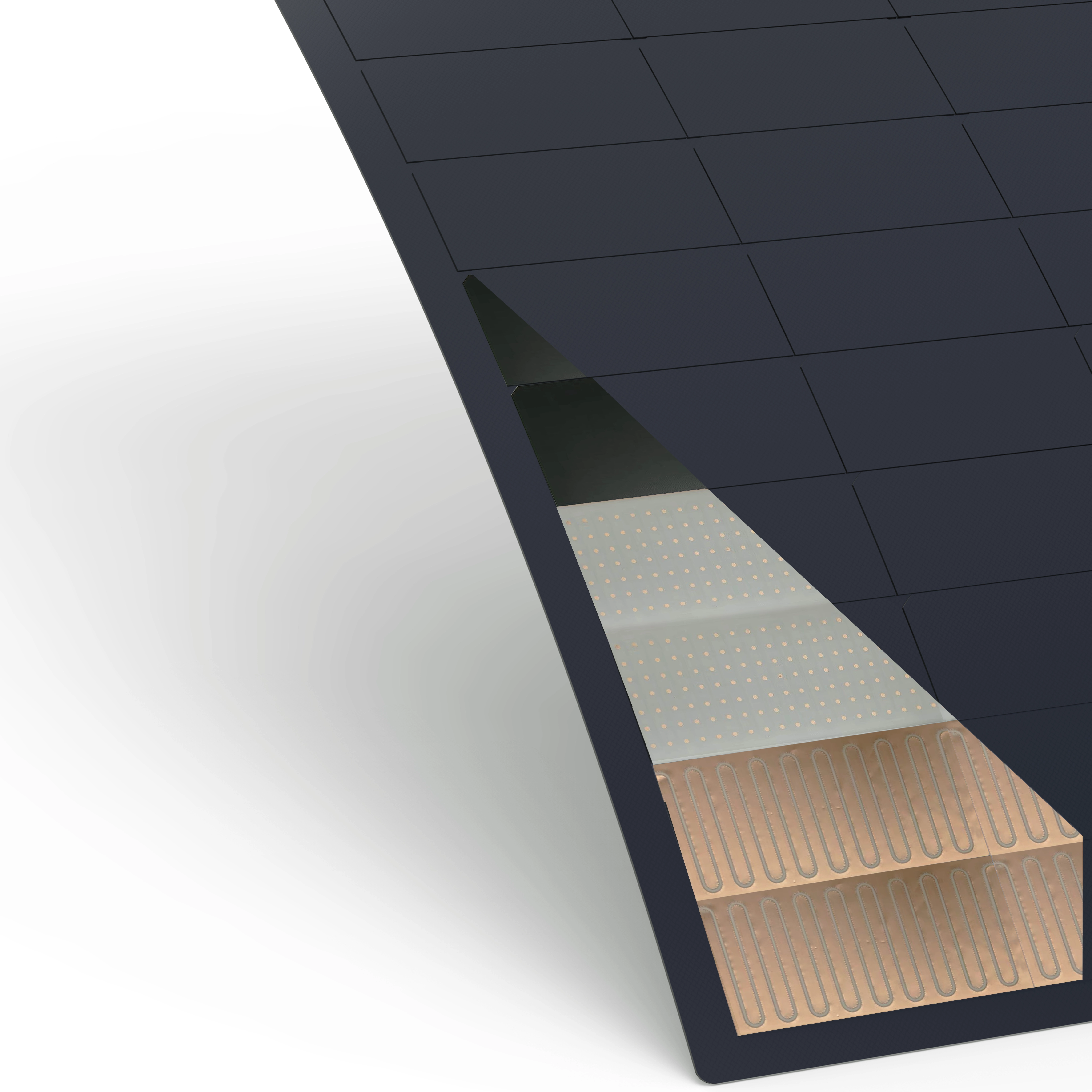

The U-IBC(ultimate interdigitated back contact) module technology developed by Euronergy, which also referred  as “ planar electrical connection( PEC) ”technology, uses self-owned conductive back sheet and conductive adhesive for the cell connection and self-developed insulating encapsulation composite( IEC) material for the insulation of positive and negative electrode, replacing the ribbon connection approach, decreases the possibility of potential micro cracks caused by soldering stress, which is believed to be a major cause of power degradation.

Advantages of U-IBC/PEC Technology

Compared with conventional ribbon contacted technology, U-IBC/PEC technology are:
Higher output- as the cell conversion efficiency is up to 26%

Higher reliability-as the lower degradation rate, superiority in fire-resistance, excellent performance in dynamic load (wind, snow, hail etc.) make them more durable and reliable

Higher performance – due to optimized heat transmission using copper

Aesthetic design-as there are no busbars, no ribbons, making them smooth in the surface and uniform colors in the look

More environmentally friendly -as they are 100% lead free and recyclable
